CMC Squid™ Rig Plate

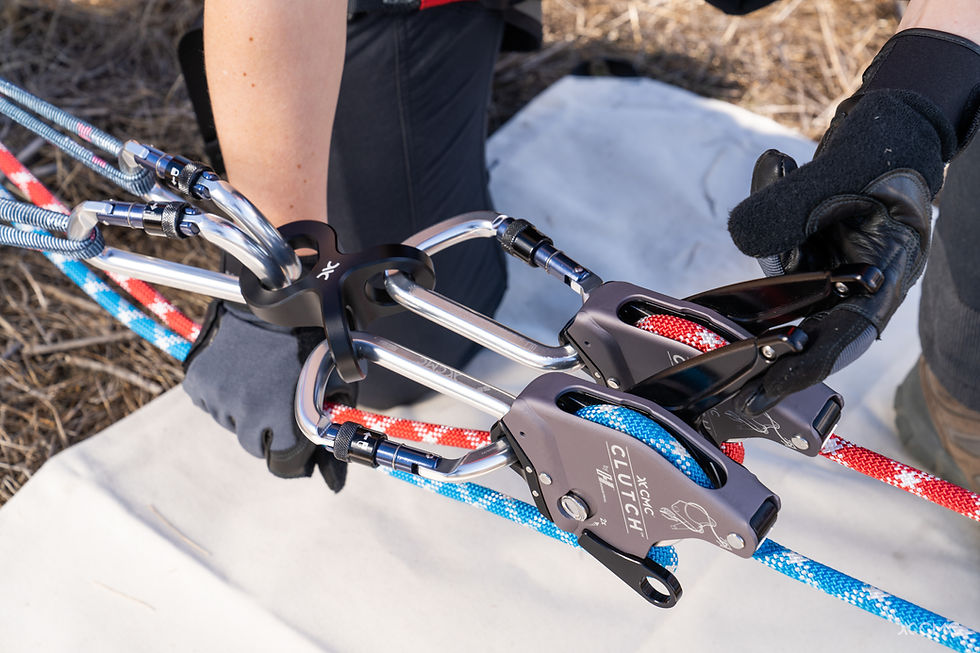

SQUID is an innovative solution for twin tension rope systems (TTRS) and load-sharing applications. Its multi-planar design features a large attachment point for redundant anchoring and two perpendicular points for optimal alignment. SQUID efficiently brings two hardware devices side-by-side for dual operation and better shared tension. SQUID also sets ideal spacing between devices, allowing a single operator to maintain simultaneous twin tension control using dual-handle technique (aka “shark finning” or “DOUBLE CLUTCHING”). SQUID promotes safe and efficient rigging of dual capacity TTRS and provides smooth raising and lowering in mirrored and nested systems.

SQUID streamlines the rigging of redundant load-sharing systems. Its attachment points are compatible with a wide range of connection methods and it positions rope hardware for easy loading and unloading while connected. SQUID naturally orients toward the load and lets components move freely, reducing the risk of binding and mitigating extension in the event of anchor or line failure. Strong and compact, SQUID is a versatile tool for TTRS, litter bridals, cross hauls, and more.

SQUID is CE marked, classified to use for specific configurations including TTRS, and classified to use when the secondary points are pulled directly apart from each other. Please note, the breaking strength of textiles may be reduced when directly connected to the SQUID. Follow best practices for load sharing and redundancy. Please refer to the textile data provided in the link below for more information.

Features:
Multi-planar rigging plate with perpendicular attachment points
Optimizes device alignment for twin tension rope systems (TTRS)
Enables single operator control for better shared tension
Promotes smooth loading / unloading of connected hardware
Allows components to move freely and orient toward the load
Reduces shifting / extension in the event of line or anchor failure
Aligns secondary points for high strength and easy load sharing
Supports a variety of connection methods for versatile rigging
Provides large collection points for building redundant systems
Primary attachment point fits two (G) or three (T) carabiners
Secondary attachment points fit one (G) or two (T) carabiners
Simple and solid aircraft grade aluminum with no moving parts
Strong, compact, and lightweight for multiple applications

Certifications:
NFPA
GENERAL USE (G) MBS 45 KN (10,116 LBF) – SPECIFIC CONFIGURATIONS*
TECHNICAL USE (T) MBS 27.7 KN (6,227 LBF)
CE
PPE-R/RFU 11.114 VERSION 01
